Warm Saturn type exoplanets orbiting M-dwarfs are particularly suitable for in-depth cloud characterisation through transmission spectroscopy due to their favourable stellar to planetary radius contrast. However, modelling cloud formation consistently within the 3D atmosphere remains computationally challenging. The aim is to explore the combined atmospheric and micro-physical cloud structure, and the kinetic gas-phase chemistry for the warm Saturn HATS0-6b orbiting an M-dwarf. A combined 3D cloudy atmosphere model is constructed by iteratively executing the 3D General Circulation Model (GCM) expeRT/MITgcm and a kinetic cloud formation model, each in its full complexity. Resulting cloud particle number densities, sizes, and compositions are used to derive the local cloud opacity which is then utilised in the next GCM iteration. The disequilibrium H/C/O/N gas-phase chemistry is calculated for each iteration to assess the resulting transmission spectrum in post-processing. The cloud opacity feedback causes a temperature inversion at the sub-stellar point and at the evening terminator at gas pressures higher than 0.01 bar. Furthermore, clouds cool the atmosphere between 0.01 bar and 10 bar, and narrow the equatorial wind jet. The transmission spectrum shows muted gas-phase absorption and a cloud particle silicate feature at approximately 10 micron. The combined atmosphere-cloud model retains the full physical complexity of each component and therefore enables a detailed physical interpretation with JWST NIRSpec and MIRI LRS observational accuracy. The model shows that warm Saturn type exoplanets around M-dwarfs are ideal candidates to search for limb asymmetries in clouds and chemistry, identify cloud particle composition by observing their spectral features, and identify the cloud-induced strong thermal inversion that arises on these planets specifically.

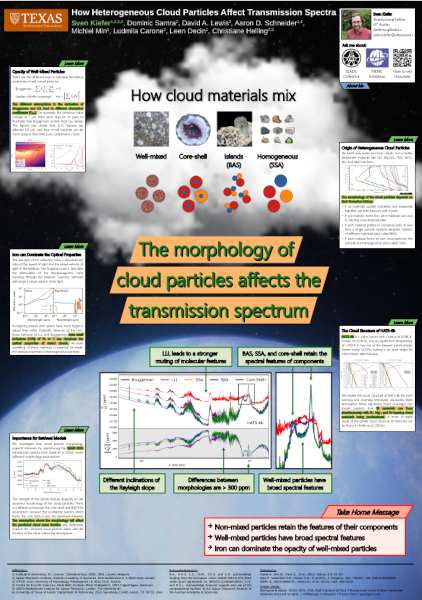

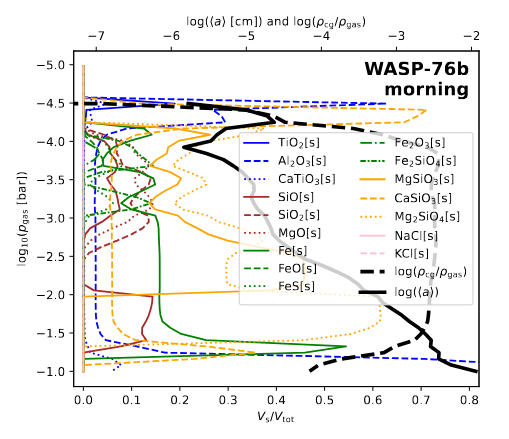

The possibility of observing spectral features in exoplanet atmospheres with space missions like the JWST and ARIEL necessitates the accurate modelling of cloud particle opacities. In exoplanet atmospheres, cloud particles can be made from multiple materials and be considerably chemically heterogeneous. Therefore, assumptions on the morphology of cloud particles are required to calculate their opacities. The aim of this work is to analyse how different approaches to calculate the opacities of heterogeneous cloud particles affect cloud particle optical properties and how this may effect the interpretation of data observed by JWST and future missions. We calculate cloud particle optical properties using seven different mixing treatments: four effective medium theories (EMTs: Bruggeman, Landau-Lifshitz-Looyenga (LLL), Maxwell-Garnett, and Linear), core-shell, and two homogeneous cloud particle approximations. We conduct a parameter study using two-component materials to study the mixing behaviour of 21 commonly considered cloud particle materials for exoplanets. To analyse the impact on observations, we study the transmission spectra of HATS-6b, WASP-39b, WASP-76b, and WASP-107b. Materials with large refractive indices, like iron-bearing species or carbon, can change the optical properties of cloud particles when they comprise less than 1\% of the total particle volume. The mixing treatment of heterogeneous cloud particles also has an observable effect on transmission spectroscopy. Assuming core-shell or homogeneous cloud particles results in less muting of molecular features and retains the cloud spectral features of the individual cloud particle materials. The predicted transit depth for core-shell and homogeneous cloud particle materials are similar for all planets used in this work. If EMTs are used, cloud spectral features are broader and cloud spectral features of the individual cloud particle materials are not retained. Using LLL leads to less molecular features in transmission spectra compared to Bruggeman.

Recent observations suggest the presence of clouds in exoplanet atmospheres but have also shown that certain chemical species in the upper atmosphere might not be in chemical equilibrium. Present and future interpretation of data from, for example, CHEOPS, JWST, PLATO and Ariel requires a combined understanding of the gas-phase and the cloud chemistry. The goal of this work is to calculate the two main cloud formation processes, nucleation and bulk growth, consistently from a non-equilibrium gas-phase. The aim is further to explore the interaction between a kinetic gas-phase and cloud micro-physics. The cloud formation is modelled using the moment method and kinetic nucleation which are coupled to a gas-phase kinetic rate network. Specifically, the formation of cloud condensation nuclei is derived from cluster rates that include the thermochemical data of (TiO2)_N from N = 1 to 15. The surface growth of 9 bulk Al/Fe/Mg/O/Si/S/Ti binding materials considers the respective gas-phase species through condensation and surface reactions as derived from kinetic disequilibrium. The effect of completeness of rate networks and the time evolution of the cloud particle formation is studied for an example exoplanet HD 209458 b. A consistent, fully time-dependent cloud formation model in chemical disequilibrium with respect to nucleation, bulk growth and the gas-phase is presented and first test cases are studied. This model shows that cloud formation in exoplanet atmospheres is a fast process. This confirms previous findings that the formation of cloud particles is a local process. Tests on selected locations within the atmosphere of the gas-giant HD 209458 b show that the cloud particle number density and volume reach constant values within 1s. The complex kinetic polymer nucleation of TiO2 confirms results from classical nucleation models. The surface reactions of SiO[s] and SiO2[s] can create a catalytic cycle that dissociates H2 to 2 H, resulting in a reduction of the CH$_4$ number densities.

Nucleation is considered to be the first step in dust and cloud formation in the atmospheres of asymptotic giant branch (AGB) stars, exoplanets, and brown dwarfs. In these environments dust and cloud particles grow to macroscopic sizes when gas phase species condense onto cloud condensation nuclei (CCNs). Understanding the formation processes of CCNs and dust in AGB stars is important because the species that formed in their outflows enrich the interstellar medium. Although widely used, the validity of chemical and thermal equilibrium conditions is debatable in some of these highly dynamical astrophysical environments. We aim to derive a kinetic nucleation model that includes the effects of thermal non-equilibrium by adopting different temperatures for nucleating species, and to quantify the impact of thermal non-equilibrium on kinetic nucleation. Forward and backward rate coefficients are derived as part of a collisional kinetic nucleation theory ansatz. The endothermic backward rates are derived from the law of mass action in thermal non-equilibrium. We consider elastic collisions as thermal equilibrium drivers. For homogeneous TiO2 nucleation and a gas temperature of 1250 K, we find that differences in the kinetic cluster temperatures as small as 20 K increase the formation of larger TiO2 clusters by over an order of magnitude. An increase in cluster temperature of around 20 K at gas temperatures of 1000 K can reduce the formation of a larger TiO2 cluster by over an order of magnitude. Our results confirm and quantify the prediction of previous thermal non-equilibrium studies. Small thermal non-equilibria can cause a significant change in the synthesis of larger clusters. Therefore, it is important to use kinetic nucleation models that include thermal non-equilibrium to describe the formation of clusters in environments where even small thermal non-equilibria can be present.

We combine angular differential imaging (ADI) with spectral differential imaging (SDI) to investigate 3 different imaging techniques for spectral direct imaging: ASDI, SADI and CODI. Using SPHERE/IFS observations we test the techniques on Beta Pictoris b, 51 Eridani b and HR 8799 e. Our results show that combining SDI with ADI in general can help and that CODI achieves overall the best results. You can also read more about it in a well written blog post by David Gooding.

We implemented full radiative transfer into MITgcm, creating expert/MITgcm. With it, we analysed the temperature structure, wind structure and the dynamical heat transport of the two Hot Jupiters HD 209458b and WASP-43b. We found that the deep layers of the two planets differ and further observations of WASP-43b could help to explore dynamical processes in the deep atmosphere.
To analyse the impact of clouds on 3D exoplanets, implementing cloud formation into the MITgcm is one of my core tasks for my PhD. This paper does not yet include cloud modeling, but it provides the basis for future implementation.
